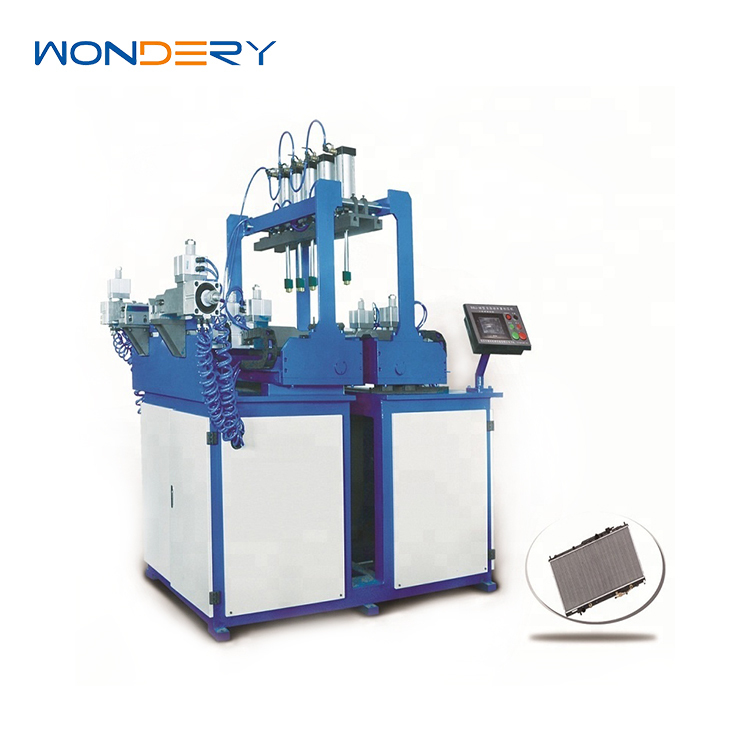

PLC Control Auto Radiator Plastic Tank Clinching Machine 5.5kw

Name: PLC Control Auto Radiator Plastic Tank Clinching Machine 5.5kw
Brand: Wuxi Wondery Industry Equipment Co., Ltd
Price: 18.00 USD
Availability: InStock

Brand Name:	WONDERY
MOQ:	1
τιμή:	$17,000-20,000

Detail Information

Περιγραφή του προϊόντος

Detail Information

Place of Origin:

Fujian, China

Πιστοποίηση:

Weight:

1500kg

Core components:

PLC, Bearing, motor

Power:

5.5kw

Radiator max height:

1000mm

Radiator max width:

850mm

Radiator max thickness:

120mm

Step distance:

adjustable

Crimped teeth quantity:

max 100 pieces

Total power:

1.5kw

Voltage grade:

AC-220V; 50Hz

Overall dimension:

1900×1800×2200mm

Control type:

PLC

Crimping mechanism:

push over and pressing

Crimping program storage:

250 groups

Machine type:

Servo type

Επισημαίνω:

PLC control radiator clinching machine

auto plastic tank clinching machine

5.5kw radiator fin machine

Περιγραφή του προϊόντος

Wondery Top Selling Auto Radiator Plastic Tank Clinching Crimping Machine

Product Specifications

Attribute	Value
Weight	1500kg
Video Outgoing-Inspection	Provided
Machinery Test Report	Provided
Core Components	PLC, Bearing, Motor
Warranty	1 Year
Machine Name	Plastic Tank Crimping Machine or Clinching Machine
Use	To lock together the header and the tank
Application Field	Radiator making line for auto industry or other vehicles
Working Principle 1	Push over and pressing mechanism for teeth header
Working Principle 2	Direct push-over and rolling for wavy non-teeth header
Type	PLC, Compressor
Color	Customer's Requirement
Power	5.5kw
Condition	New
Applicable Industries	Hotels, Manufacturing Plant, Restaurant
Showroom Location	Italy, Brazil, India, Mexico, Thailand
Warranty of Core Components	1 Year

Product Overview

PLC Control Radiator Plastic Tank Clinching Machine

Main Application

The equipment is used for crimping the teeth of the header plates and locking the plastic tank tight to the core body. There is a sealed space between the crimped plastic tank, sealing gasket and header plate. This servo type plastic tank crimping machine is used to handle products of various specifications. The crimping machine is divided into the long-side header crimping mechanism and end crimping mechanism.

Main Characteristics

PLC controlled with crimping program set up through imported Taiwan touch screen
Touch screen indicates working status and stores 250 groups of radiator crimping parameters
Separate long header and short header crimping devices
Capable of dodge moves and step-forward moves

Technical Parameters

Radiator max height: 1000mm
Radiator max width: 850mm
Radiator maximum thickness: 120mm
Step distance: adjustable for every step
Crimped teeth quantity: max 100 pieces
Total power: 1.5kw
Voltage grade: AC-220V; 50Hz
Overall dimension: 1900×1800×2200mm (L*W*H)

NOTE: Manual crimping machine and fast type one-time crimping machine is also available.

About Wuxi Wondery Industry Equipment Co., Ltd.

We are a professional supplier of industrial machines specializing in equipment for the automobile industry, household air conditioner industry, engineering vehicle industry, power generation plant industry, train industry, and ship industry. Our main products include radiator making machines, aluminum fin machines, aluminum radiator core builder machines, and various other specialized equipment.

Established in 2008, we have extensive experience in development, design, quality control, and after-sales service. We provide technical consultation, installation, test-running, technical training, and maintenance services. Our machines have been exported to numerous countries worldwide, and we can design non-standard products according to customer requirements.

Frequently Asked Questions

1. What is the power supply of the heat exchanger making machines?

The power supply is to be decided by the customer's side. We can adjust the power supply (volt and phase) through a transformer or use the customer's voltage directly to ensure the machine is ready for use at the end user's site.

2. What information should the customer provide to get an accurate quotation?

Customers should provide related technical requirements, drawings, pictures, industrial voltage, planned output, and other relevant specifications.

3. What is the payment term?

Payment terms are 40% down payment and 60% before delivery (T/T mode).

4. What is the delivery time?

Delivery time is 30-60 days after receipt of down payment.
